Cubing

Mission Gauge, as the biggest checking fixture supplier in South China, we have 6 sets of 5 axis CNC(brand Breton and DMU), and 8 sets of CMM, so we have ability to build big size checking fixture, cubing gauge, even master model.

Mission has the ambition to be the top ranked gauge supplier in gauge industry. Welcome inquiry and visit!

pls contact: kt-9@missiongauge.com(Edie Pei) for quotation and concept service.

Hinten Cubing
It is used to locate assembly parts. It is used to quickly and intuitively check holes,
mating surfaces, contours and other main features with a hand gauge to verify whether the product is qualified.

Seat Cubing
seat-cubing-suppliers
It is used to locate assembly parts. It is used to quickly and intuitively check holes,
mating surfaces, contours and other main features with a hand gauge to verify whether the product is qualified.

Hinten Cubing
It is used to locate assembly parts. It is used to quickly and intuitively check holes,
mating surfaces, contours and other main features with a hand gauge to verify whether the product is qualified.

Seat Cubing
Seat Cubing factory
It is used to locate assembly parts. It is used to quickly and intuitively check holes,
mating surfaces, contours and other main features with a hand gauge to verify whether the product is qualified.

Mission Gauge & Fixture another business------Cubing

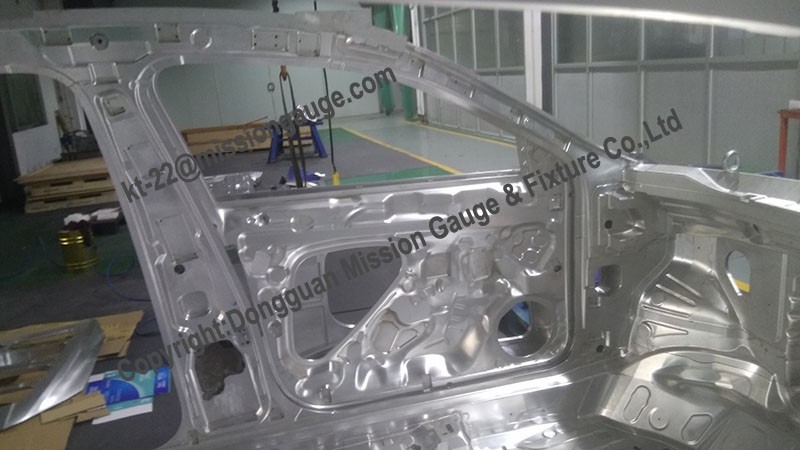

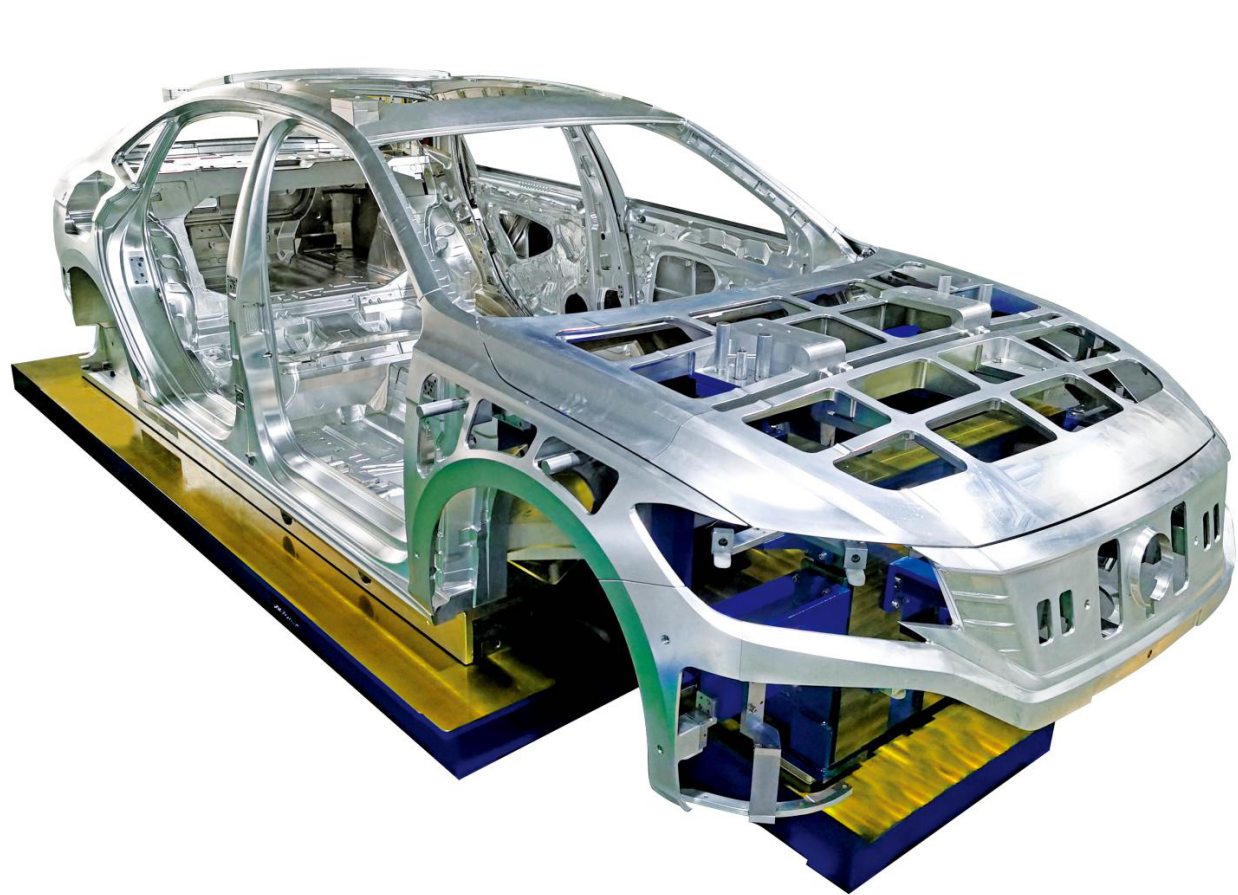

The Cubing of the whole combi is generally a high-end precision inspection tool, which is produced according to the digital model of the Kombi body according to the 1:1 ratio after the product development and the Kombi data are frozen. Generally used aerospace cast aluminum, through a precision CNC five-axis machining center, made of an all-aluminum standard body-in-white, is a true reproduction of three-dimensional digital model, mainly used for the matching and evaluation of outer cover parts and internal and external parts.

Gracesun@missiongauge.com

Cubing gauge for door,interior cubing
Door cubing is used for product positioning of door panel assembly. It can quickly and intuitively detect the main features such as product hole, assembly surface and outline by hand-held inspection tool to verify whether the product is qualified.

Automotive cubing,seat Cubing,interior cubing gauge,It is used for positioning the seat assembly product. It can quickly and intuitively detect the main features such as product hole, assembly surface and outline by hand-held inspection tool to verify whether the product is qualified.

Door Cubing
door-cubing-suppliers
It is used to locate assembly parts. It is used to quickly and intuitively check holes,
mating surfaces, contours and other main features with a hand gauge to verify whether the product is qualified.
